적층 제품
제품명

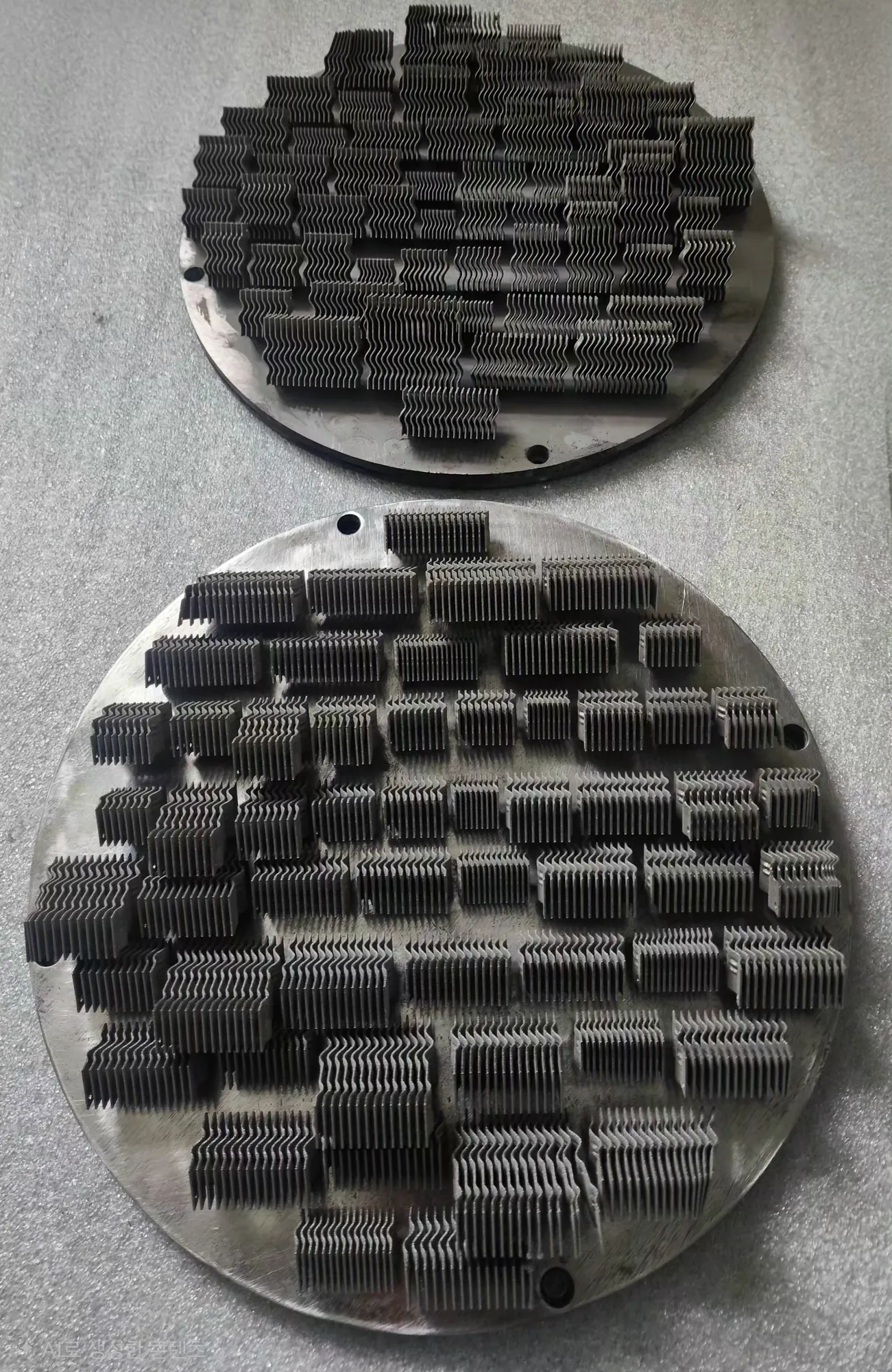

타이어 커프 금형
제품명

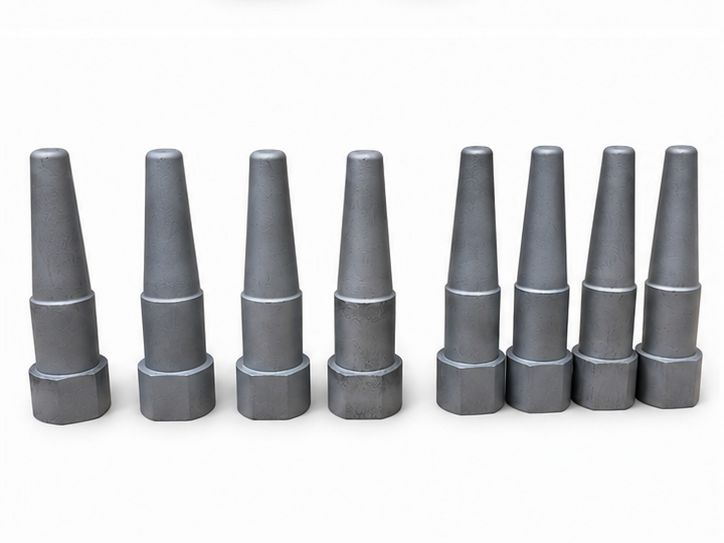

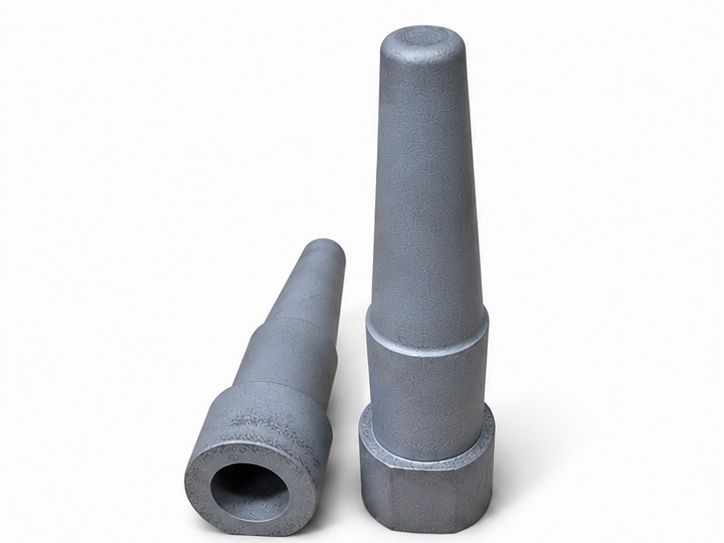

Diecasting용 엔진 인서트 금형
사용 가능한 합금분말 소재
| Type | Chemical Composition (wt%) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Component | Fe | Ni | Co | Mo | Ti | Si | Mn | C | S | P | Al |
|
Maraging Steel (MS1-NKMS) |
Bal. | 17.0 - 19.0 | 8.5 - 9.5 | 4.0 - 5.2 | 0.6 - 0.8 | ≤ 0.1 | ≤ 0.1 | ≤ 0.03 | ≤ 0.01 | ≤ 0.01 | 0.05 - 0.15 |
| Type | Chemical Composition (wt%) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Component | Fe | Cr | Ni | Mn | Mo | Si | C | S | P |
|
Stainless Steel (304L) |
Bal. | 18.0 - 20.0 | 8.0 - 12.0 | ≤ 2.0 | - | ≤ 1.0 | ≤ 0.03 | ≤ 0.03 | ≤ 0.04 |
|
Stainless Steel (316L) |
Bal. | 16.0 - 18.0 | 10.0 - 14.0 | ≤ 2.0 | 2.0 - .3.0 | ≤ 1.0 | ≤ 0.03 | ≤ 0.03 | ≤ 0.04 |
| Type | Chemical Composition (wt%) | |||||||
|---|---|---|---|---|---|---|---|---|
| Component | Co | Cr | Mo | Mn | Si | Fe | Ni | C |
| Cr-CoMo Alloy | Bal. | 27.0 - 30.0 | 5.0 - 7.0 | ≤ 1.0 | ≤ 1.0 | ≤ 0.75 | ≤ 0.5 | ≤ 0.35 |
| Type | Chemical Composition (wt%) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Component | Ni | Mo | Cr | Fe | W | Co | Mn | P | V | Si | S | C |
| C276 | Bal. | 15.0 - 17.0 | 14.5 - 16.5 | 4.0 - 7.0 | 3.0 - 4.5 | ≤ 2.5 | ≤ 1.0 | ≤ 0.04 | ≤ 0.35 | ≤ 0.08 | ≤ 0.03 | ≤ 0.01 |
| Type | Chemical Composition (wt%) | ||||
|---|---|---|---|---|---|
| Component | Ti | Al | V | Fe | C |
| Ti64 | Bal. | 5.5 - 6.75 | 3.5 - 4.5 | ≤ 0.3 | ≤ 0.08 |
| Type | Chemical Composition (wt%) | ||
|---|---|---|---|
| Component | Cu | Sn | P |
| PBC2 | Bal. | 8.0 - 11.0 | ≤ 0.05 |
